Circuit Breaker pattern in Scala

Posted on Mar 28, 2020

Circuit breaker pattern is a common microservice resiliency pattern to make system responsive after series of failures and have a fallback mechanism.

[NOTE] Spoiler — This would be a simple implementation and the Scala code would be stateful and have side-effects.

The Need

Doing a remote call or executing a task which is outside the domain boundary of the system is very common in modern applications. Especially in microservice world, we are bound to make calls to other microservices.

In such scenarios, we need to consider eventual failures. If some failures are too continuous and consistent in nature, they can hog too much of the system resources resulting into failures. We can avoid such cases using the circuit-breaker pattern.

The Concept

courtesy: https://martinfowler.com/bliki/CircuitBreaker.html

The concept is simple, the circuit represents the connection between the caller and the callee. It can only have 3 states: closed, open and half-open. The system starts with the “closed” circuit initially.

We monitor the consecutive (or within a time window) failures from the callee and when the failures exceed a threshold we trip the circuit to “open” and all the further calls from the caller won’t reach the callee and rather caller is returned with a default fallback result.

— can be implemented using a failure result counter.

We also keep monitoring the time since opening the circuit and when a certain timeout is reached, we put the circuit to “half-open” meaning, only one ‘probe’ call will pass through and its result will determine if the circuit will be closed or opened based on its success or failure.

— can be implemented using a background timer.

Implementation

CircuitState — a trait extended by possible states

	sealed trait CircuitState

	object CircuitState {
	case object Open extends CircuitState
	case object Closed extends CircuitState
	case object HalfOpen extends CircuitState
	}

view raw CircuitState.scala hosted with ❤ by GitHub

CircuitResult[T] — a trait extended by Success and Failure results of the Circuit with success return type T.

	trait CircuitResult[T] extends IterableOnce[T] with Product with Serializable {
	def isFailed: Boolean = this.toOption.isEmpty

	def isSuccess: Boolean = this.toOption.isDefined

	def toOption: Option[T] = this match {
	case CircuitSuccess(value) => Some(value)
	case _ => None
	}
	}

view raw CircuitResult.scala hosted with ❤ by GitHub

Circuit[R] — a class denoting a circuit where the call returns the result of type Future[R], future denoting an async call.

	class Circuit[R](name: String,
	// max consecutive failures on closed circuit
	private final val threshold: Int,
	// timeout from opened circuit to make it half-open
	private final val timeout: Duration,
	// max allowed consecutive half-open failures
	private final val maxAllowedHalfOpen: Int,
	// block of code whose result to be yielded on open circuit
	defaultAction: => R,
	private val logger: String => Unit,
	// function which will make circuit fail on certain success results
	failedWhen: R => Boolean = { _: R =>
	false
	},
	// circuit failure exception to ingore and return CircuitFailure response anyway
	ignoreException: Throwable => Boolean = { _: Throwable =>
	false
	})(implicit ec: ExecutionContext) {
	???
	}

view raw Circuit.scala hosted with ❤ by GitHub

States of the Circuit

	// initial state
	private val state = new AtomicReference[CircuitState](CircuitState.Closed)

	// consecutive failures while the circuit is closed (will be set to 0 after any single success)
	private val closedConsecutiveFailureCount = new AtomicInteger(0)

	// consecutive failures while the circuit is half-open
	private val halfOpenConsecutiveFailuresCount = new AtomicInteger(0)

	// half-opener timer will check this for timeout for half-opening the circuit.
	private val lastOpenTime = new AtomicLong(Long.MaxValue)
	def isTimeOutOver: Boolean =
	System.currentTimeMillis() - lastOpenTime.get() > timeout.toMillis

	def getState: CircuitState = state.get()

view raw CircuitStates.scala hosted with ❤ by GitHub

Transition of states

	private def openCircuit(): Unit = {
	circuitLogger("Opening circuit...")
	state.set(Open)
	lastOpenTime.set(System.currentTimeMillis()) // registering open time for half-opener timer
	circuitLogger("Circuit is open.")
	}

	private def closeCircuit(): Unit = {
	circuitLogger("Closing circuit...")
	state.set(Closed)
	lastOpenTime.set(Long.MaxValue) // considering the circuit was never open
	closedConsecutiveFailureCount.set(0) // fresh failure counting after closing circuit
	circuitLogger("Circuit is closed.")
	}

	private def halfOpenCircuit(): Unit = {
	circuitLogger("Half-opening circuit...")
	state.set(HalfOpen)
	halfOpenConsecutiveFailuresCount.set(0) // fresh counting half-open failures
	circuitLogger("Circuit is half-open.")
	}

view raw StateTransition.scala hosted with ❤ by GitHub

Main block execution handler — It acts as a router and invokes other handlers based on the Circuit’s state. After state transition, the thread request may come back here to be routed again based on the updated state.

	def executeAsync(block: => Future[R]): Future[CircuitResult[R]] = {
	state.get() match {
	case Closed => handleClosedAsync(block)
	case HalfOpen => handleHalfOpenAsync(block)
	case Open => Future.successful(handleOpen)
	}
	}

view raw executeAsync.scala hosted with ❤ by GitHub

Handling failure response from the Callee —

	private def handleFailureAsync(block: => Future[R],
	maybeException: Option[Throwable],
	atomicCounter: AtomicInteger,
	maxFailures: Int): Future[CircuitResult[R]] = {

	val currentFailureCount = atomicCounter.incrementAndGet()

	circuitLogger(s"[${state.get()}-error-count = $atomicCounter] $maybeException")

	if (currentFailureCount > maxFailures) {
	// on consecutive max-failure limit reached
	openCircuit()
	handleOpenAsync // returns Future.successful(handleOpen)
	} else
	maybeException match {
	case Some(exception) if ignoreException(exception) =>
	// treat it as a success
	atomicCounter.decrementAndGet()
	closeCircuit()
	executeAsync(block)
	case Some(exception) => Future.successful(CircuitFailure(exception))
	case None => Future.successful(new Exception("Invalid result excpetion"))
	}
	}

view raw handleFailureAsync.scala hosted with ❤ by GitHub

Handling closed circuit— Executing the provided block of code and yield a success or failure as the result asynchronously, while maintaining/updating the count of consecutive failures.

	private def handleClosedAsync(
	block: => Future[R]
	): Future[CircuitResult[R]] = {
	block
	.flatMap { value =>
	// on successful result from the Callee
	if (failedWhen(value)) {
	// if successful result is to be considered a failure
	handleFailureAsync(
	Future.successful(value), // evaluated block value
	None, // no exception
	closedConsecutiveFailureCount,
	threshold
	)
	} else {
	// true success
	closedConsecutiveFailureCount.set(0)
	Future.successful(CircuitSuccess(value))
	}
	}(ec)
	.recoverWith {
	// exception from the Callee
	case exception =>
	handleFailureAsync(
	block,
	Some(exception),
	closedConsecutiveFailureCount,
	threshold
	)
	}
	}

view raw HandleClosedCircuit.scala hosted with ❤ by GitHub

Handling Half-Open Circuit —

	private def handleHalfOpenAsync(
	block: => Future[R]
	): Future[CircuitResult[R]] = {
	block
	.flatMap { value =>
	if (failedWhen(value)) {
	// if success result is to be considered a failure
	handleFailureAsync(
	Future.successful(value), // evaluated block's value
	None, // no exception
	halfOpenConsecutiveFailuresCount,
	maxAllowedHalfOpen
	)
	} else {
	// on success
	closeCircuit()
	Future.successful(CircuitSuccess(value))
	}
	}(ec)
	.recoverWith {
	case exception =>
	// on failure
	handleFailureAsync(
	block,
	Some(exception),
	halfOpenConsecutiveFailuresCount,
	maxAllowedHalfOpen
	)
	}
	}

view raw handleHalfOpenAsync.scala hosted with ❤ by GitHub

Handling open circuit— return the successful future with CircuitSuccess wrapping the default value.

	private def handleOpenAsync: Future[CircuitResult[R]] = {
	Future.successful(CircuitSuccess(defaultAction))
	}

view raw handleOpen.scala hosted with ❤ by GitHub

Half-Opener Background Timer — Will trip the circuit to half-open after timeout reached since opening the circuit.

	new Timer(s"$name-circuit-opener").scheduleAtFixedRate(new TimerTask {
	override def run(): Unit = state.get() match {
	case Open if isTimeOutOver =>
	circuitLogger("Max open timeout reached.")
	halfOpenCircuit()
	case _ => ()
	}
	}, 0L, 10L)

view raw halfOpenerTimer.scala hosted with ❤ by GitHub

CircuitImplicits — Implicits making the use of our Circuit class a breeze!

	object CircuitImplicits {
	implicit class AsyncBlockExtensions[R](block: => Future[R])(
	implicit c: Circuit[R]
	) {
	def executeAsync(implicit ex: ExecutionContext): Future[CircuitResult[R]] =
	c.executeAsync(block)
	}
	}

view raw CircuitImplicits.scala hosted with ❤ by GitHub

We can now do something like:

implicit val sampleCircuit: Circuit[Int] = new Circuit[Int](
    "sample-circuit",
    5,                // max allowed consecutive closed failures
    5.seconds,        // half-opener timeout
    1,                // max allowed consecutive half-open failures
    -1,               // invalid success result
    println
)

//this will use the above created circuit to execute
Future.successful(2 + 2).executeAsync

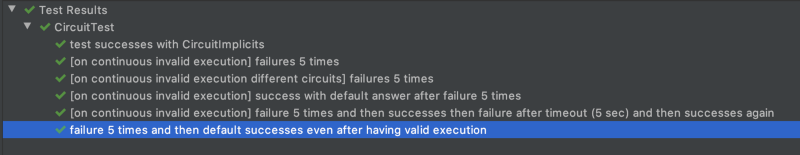

Testing it out — You can find the test cases here.
